Scrap Removal in Mold & Die

Automated Shake-off Ejection System for Scrap Removal in Mold & Die

Intelligent and automated mold manufacturing drives industry transformation, enhancing customer service and competitive advantage. GreeDaikinMold Automation [Vibration-Assisted Scrap Ejection System] is extensively implemented in stamping dies, eliminating production stoppages for manual scrap removal while boosting operational efficiency and reducing labor costs. These high-performance automated systems align with modern manufacturing standards, ensuring premium production safeguarding for clients and establishing a robust foundation for sustainable advancement in high-caliber mold fabrication.

Introduction to Vibration-Assisted Scrap Discharge System

The integrated mechanism combines a vibration unit with scrap chutes. Upon activating the pneumatic valve, the vibration unit drives reciprocating motion, inducing vibratory action in connected scrap chutes. This dynamically dislodges stamped scrap into collection zones without production stoppages, eliminating manual waste handling.

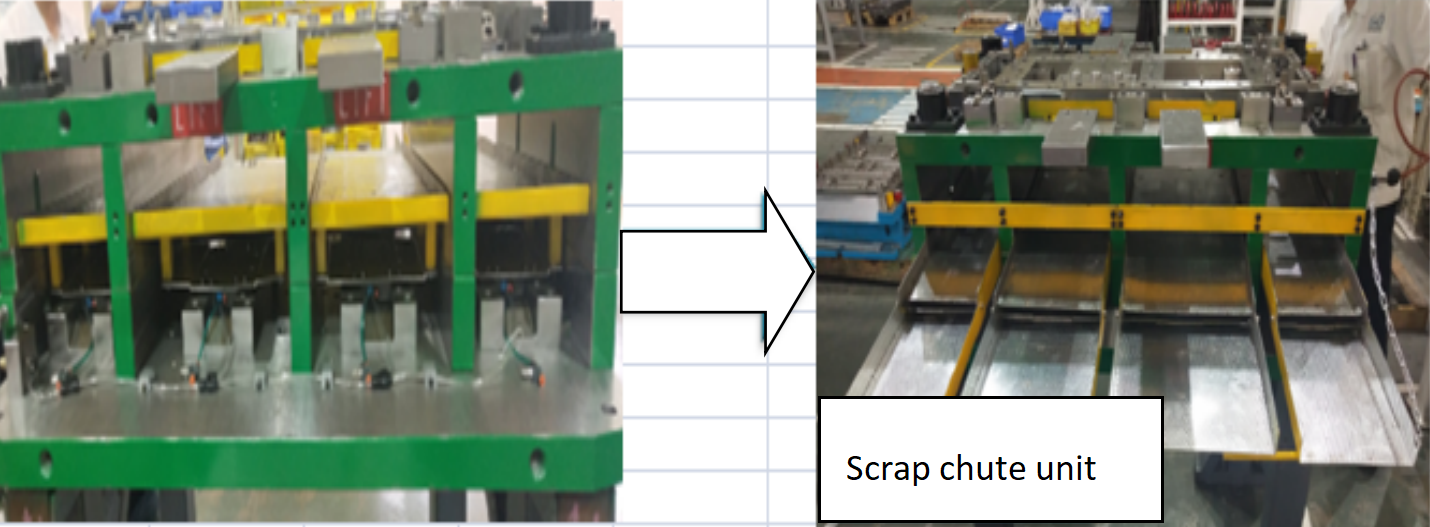

Vibration Unit & Scrap Chute Assembly

Technical highlights: easy disassembly and assembly, the vibration frequency can be adjusted through the air pipe valve; the shape and quantity of the scrap chute can be designed and manufactured according to mold requirements; and the power system utilizes compressed air at a low cost.

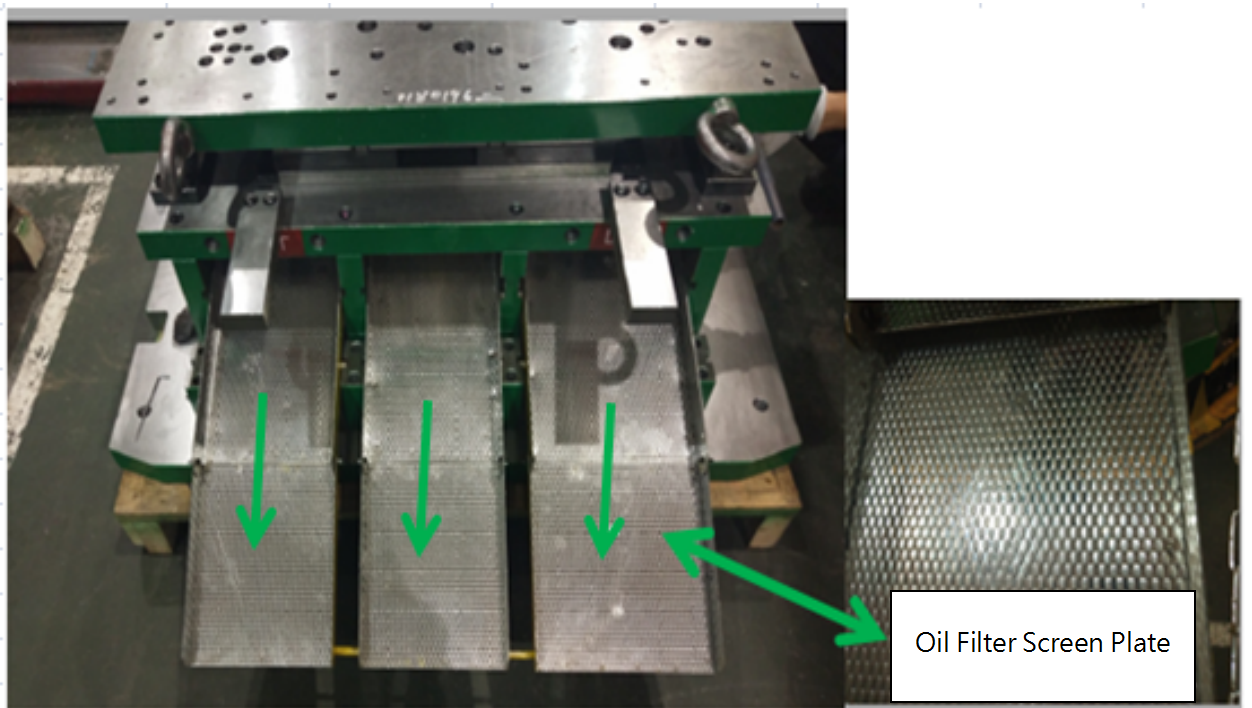

Scrap Chute, Oil Filter Screen Plate Assembly

Technology Introduction: An Oil Filter Screen Plate is added to the scrap chute and welded together. The smooth surface of the plate reduces friction when the die-cut scrap slides down. The smooth, small bumps on the plate reduce the contact area during the slide, allowing the scrap to slide smoothly and safeguarding the automated mass production of the mold, thereby improving production efficiency.

Scrap chute, Oil Filter Screen Plate
