The die clearance is critical for part quality

Practice has proven that the size of the clearance and whether its distribution is uniform directly affect the sheared edge quality, dimensional accuracy, blanking force, and die life of the blanked part. Clearance sizes can be categorized into three conditions: proper clearance, excessive clearance, and insufficient clearance.

(1). Edge Condition of Stamping Die

With proper clearance, the cracks generated at the punch and die cutting edges coincide during material separation, resulting in a relatively straight, smooth sheared edge with minimal roll-over and burr, which yields higher part quality; however, proper clearance is not an absolute value but a specific range within which parts with good sheared edges can be obtained. If the clearance is excessive, the cracks at the punch and die edges do not coincide—the crack near the punch edge lies inside the crack near the die edge—subjecting the material to significant stretching, reducing the burnished zone, and increasing burr, roll-over, and taper; conversely, if the clearance is insufficient, the cracks again fail to coincide, with the punch-side crack lying outside the die-side crack, forming a secondary burnished zone on the sheared surface and leading to lamination and burr between them.

(2). Regarding dimensional accuracy

After blanking or piercing, elastic recovery (springback) affects dimensional precision. When clearance is below a certain threshold, compressive deformation causes the blanked part size to exceed the die dimensions and the punched hole size to be smaller than the punch due to elastic recovery. Conversely, when clearance exceeds a certain threshold, tensile deformation leads to the blanked part size being smaller than the die and the punched hole size exceeding the punch due to elastic recovery. The influence of clearance on blanking and piercing accuracy differs and is also related to the material's rolling grain direction.

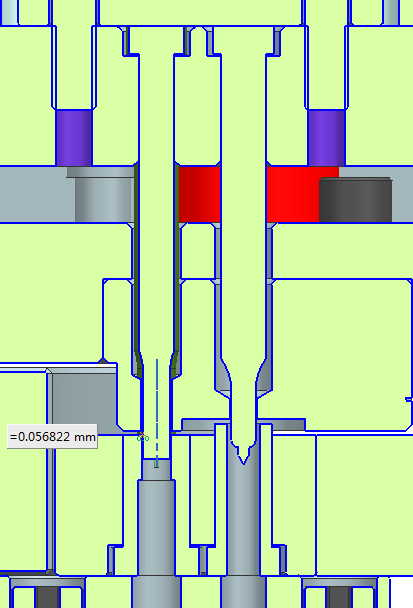

(3) . Regarding blanking force and die life

With larger clearance, the blanking force decreases to some extent, and the stripping force and ejection force are also reduced. During blanking, the workpiece exerts lateral pressure on the cutting edges of the punch and die, and friction exists between the punch and the punched hole as well as between the die and the blanked part. Smaller clearance leads to greater lateral pressure and friction. Furthermore, due to inherent manufacturing and assembly errors in the die itself, the punch cannot be perfectly perpendicular to the die surface, and the clearance distribution cannot be entirely uniform. Therefore, minimal clearance accelerates wear on the cutting edges of the punch and die, shortening their service life. A larger clearance can reduce friction between the side surfaces of the punch/die and the material, mitigating the adverse effects of uneven clearance distribution and thereby improving die life. However, if the clearance is too large, the bending of the workpiece increases correspondingly, leading to uneven distribution of compressive stress on the end faces of the punch and die cutting edges. This makes them prone to chipping or plastic deformation, which is also detrimental to die life.

(4). The impact of punching clearance on products

In summary, the control of blanking clearance is the core of sheet metal die design and process. As discussed, whether the clearance is appropriate directly and simultaneously determines the surface finish and dimensional accuracy of the product, and profoundly affects production energy consumption and die durability. It is not an isolated value, but an engineering balance point connecting material properties, product requirements, and production costs.

Therefore, successful die design lies in a deep understanding of the chain reactions caused by the three conditions—"proper clearance, excessive clearance, and insufficient clearance"—and in optimizing and stabilizing the clearance within the optimal range through precise calculation and accumulated experience. Mastering this core is essential to ensuring the high quality and consistency of blanked parts and, ultimately, achieving maximized production efficiency and die economy.
