The optimization of Air conditioner Vertical mold

In recent years,  Clients are becoming more and more increasingly demanding in terms of high quality and low cost. Mold manufacturers need to continuously innovate technology, in particular, how to technically modify the mold-making process for special products, to ensure that the mold is successful in the first mold test. We will guarantee the customer's needs by reducing the mold test, shortening delivery time, and saving production costs.

The features of vertical molds are as follows:

1. PP material is prone to flash defects in plastic materials.

2. The thinnest of uneven blade thickness is 0.40MM, the thickest part is 1.50MM. The part is easy to short-circuit and can lead to severe shunting, which is also prone to flash defects.

Both of these locations are reflected on the blade. The original blade was formed by the large inclined ejector in the middle and the straight ejector on both sides.

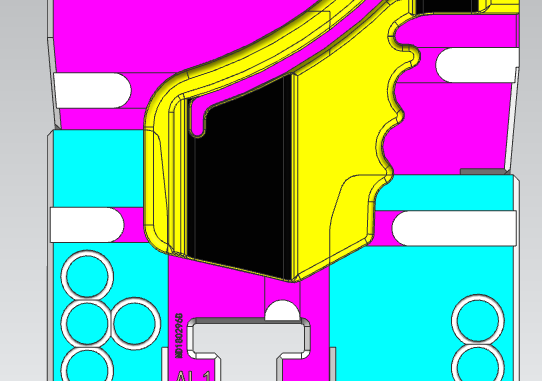

The parting surface of a straight top and an angled top, as shown in the figure below, is prone to poor fit and can cause flash defects.

We improve the parting surface to resolve the defect issues

In short, the sloping top fits the straight top that is to prolong the parting surface to the material location, and guarantee material sealing is within the sloping top. simple assembly, and yields good results. By eliminating burrs and defects, the blower blade mold reached the production state on the first trial molding.

The experience of GDM's vertical molds

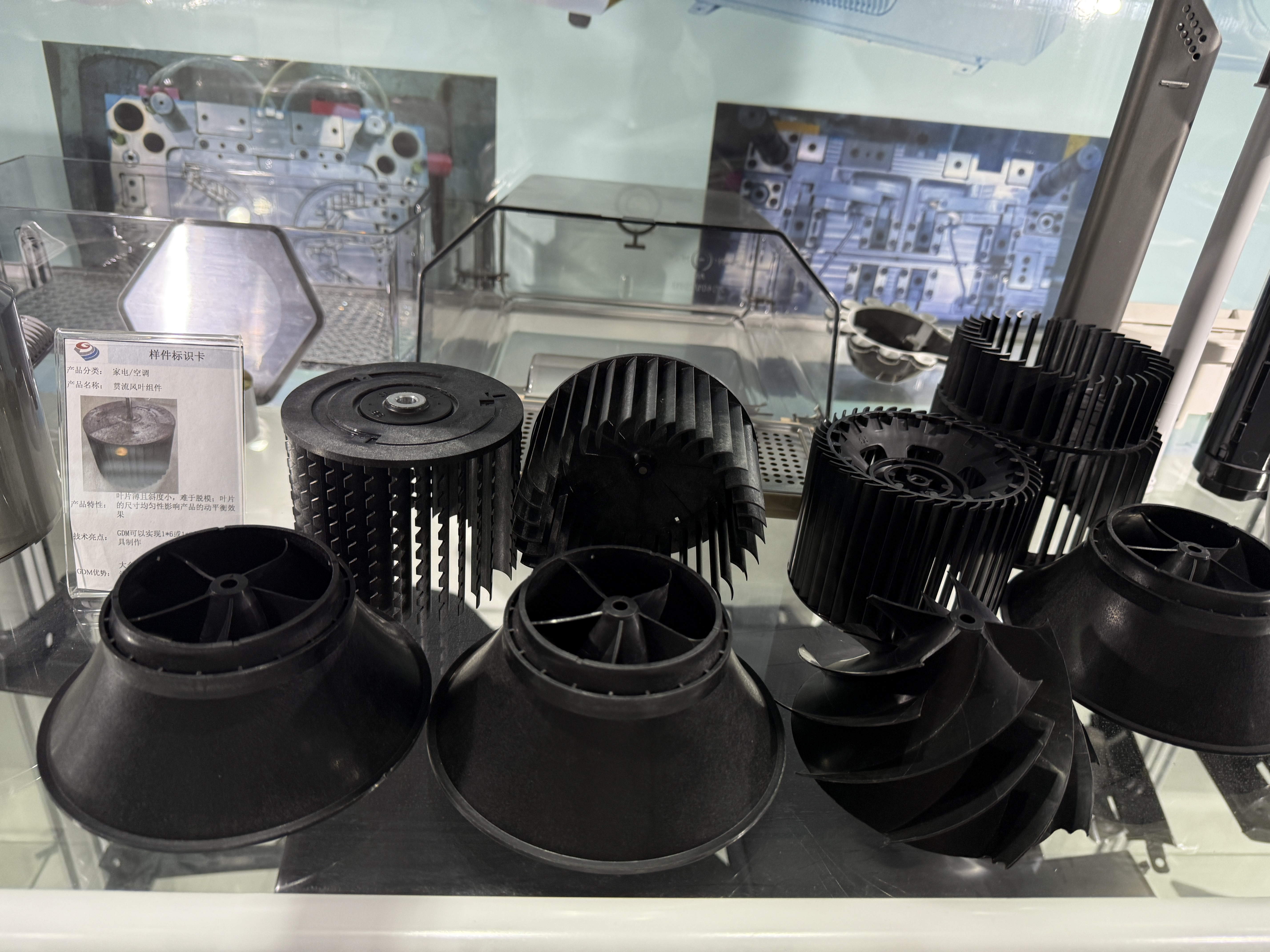

Our company has achieved success in the first trial molding for the sweeping blade mold project, which has become a technical highlight for the company. This case not only demonstrates our capability for rapid response and reliable delivery but has also accumulated valuable experience for undertaking similar high-end orders. Based on a mature technical system, our expertise fully covers the research, development, and manufacturing of various complex and precision fan blade molds, including axial flow, cross flow, mixed flow, and turbine blades. If your company has related needs, GDM cordially invites you to inquire, and we look forward to serving you with our professional expertise.
