Hot runner molds have become an essential technology in automotive interior parts manufacturing, enabling manufacturers to achieve high precision, reduced cycle times, and cost-effective production for complex components such as dashboards, door panels, and console trims.
Zhuhai Gree Daikin Precision Mold Co., Ltd., a leader in precision mold manufacturing, specializes in designing and producing hot runner molds for automotive and home appliance industries. The company’s expertise ensures high-quality molding solutions that meet global automotive OEM standards while supporting customers in adopting advanced process control strategies for hot runner molds.
Automotive interior parts often have large surface areas, complex geometries, and aesthetic requirements that demand advanced molding technologies.
Hot runner molds provide:
Material savings: Elimination of runners reduces material waste, critical for large parts with expensive engineering resins.
Improved part quality: Better control of flow and pressure, reducing weld lines and flow marks.
Cycle time reduction: Faster filling and cooling cycles due to direct gating and optimized flow paths.
Automation compatibility: Easier integration into automated production lines for high-volume automotive parts.
These advantages align with automotive industry demands for lightweighting, cost reduction, and precision, making hot runner systems a strategic choice for interior part manufacturers.
To understand process control, it is essential to review key components of hot runner molds:
Manifold System: Distributes molten plastic from the injection unit to multiple gates while maintaining consistent temperature.
Heated Nozzles: Deliver molten plastic into the cavities without solidifying during transfer.
Temperature Controllers: Manage the heating of manifolds and nozzles to maintain melt temperature.
Valve Gate System (if applicable): Allows precise control over the opening and closing of gates for optimized flow control.
Multi-zone temperature control is essential in hot runner molding to ensure consistent material flow and high-quality parts. By preventing material degradation due to overheating, it maintains consistent melt viscosity and flow behavior, which is crucial for minimizing color variations and cosmetic defects. This control strategy is particularly important for high-precision applications where part quality and consistency are paramount.
To achieve optimal multi-zone temperature control, use independent temperature zones for manifold branches and each nozzle. This allows for precise temperature regulation tailored to the specific needs of each part of the system. Employ PID-controlled hot runner controllers to ensure stable temperature regulation, and regularly monitor and calibrate thermocouples to maintain accuracy. These practices help in achieving uniform heating and preventing hot spots or cold zones that could affect part quality.
For complex parts such as automotive interior components, valve gate hot runner systems offer significant advantages. These systems enable sequential injection, which reduces weld lines by controlling the filling pattern. This is particularly useful for parts with intricate geometries where uniform filling is critical to avoid defects like sink marks and flow lines on Class A surfaces.
To optimize valve gate timing, use mold-filling simulation software to design the optimal timing sequences for each gate. This software can help predict material flow and identify potential issues before production begins. Employ sensors to monitor cavity pressures for precise control, and regularly test and adjust timing based on material properties and part geometry. This ensures that each cavity is filled uniformly, improving surface quality and reducing the risk of defects.
Regular maintenance of the hot runner system is crucial for maintaining optimal performance. This includes cleaning and inspecting the hot runner components to prevent clogs and ensure smooth operation. Proper maintenance can extend the life of the system and prevent costly downtime.
Different materials may require specific temperature and timing settings. Adapt the process control strategies based on the material properties and the specific requirements of the part being produced. This ensures that the system operates efficiently and consistently, regardless of the material used.
| Aspect | Hot Runner Molds | Cold Runner Molds |
|---|---|---|
| Material Waste | Minimal, no runners | High, runner scrap |
| Cycle Time | Shorter, faster cooling | Longer, runner cooling required |
| Surface Quality | Superior, reduced weld lines | Potential weld lines, flow marks |
| Initial Investment | Higher | Lower |
| Maintenance Complexity | Higher, requires expertise | Lower |
| Energy Consumption | Lower per part due to faster cycles | Higher due to longer cycles |
Zhuhai Gree Daikin Precision Mold Co., Ltd. assists customers in calculating ROI for hot runner systems based on production volumes, material costs, and cycle time savings, ensuring informed investment decisions.
Material degradation can occur due to excessive residence time or hot spots in the manifold, leading to defects and reduced part quality. Solution: Use advanced manifold designs with uniform heating provided by suppliers like Zhuhai Gree Daikin Precision Mold Co., Ltd., which can help prevent material degradation.
Valve pin leakage can occur due to wear or improper thermal expansion control, leading to material waste and potential defects. Solution: Regular maintenance and using high-precision valve pins with optimized tolerances can help prevent leakage and ensure consistent performance.
Hot runners may retain material, making color changes challenging and time-consuming. Solution: Design hot runners for easy purging and use optimized color change procedures to minimize downtime and material waste during color changes.
Heater failures can lead to uneven melt temperature distribution, causing defects and inconsistent part quality. Solution: Implement preventive maintenance schedules and use quality heaters with safety controls to ensure reliable temperature regulation.
| Practice | Benefit |
|---|---|
| Use multi-zone controllers with alarms | Ensures uniform heating, reduces defects |
| Monitor cavity pressure and temperature | Enables real-time process adjustments |
| Perform regular manifold and nozzle inspections | Prevents downtime due to leaks or failures |
| Use simulation tools for filling analysis | Optimizes gate timing and reduces weld lines |
| Train operators on hot runner handling | Ensures consistent process control |

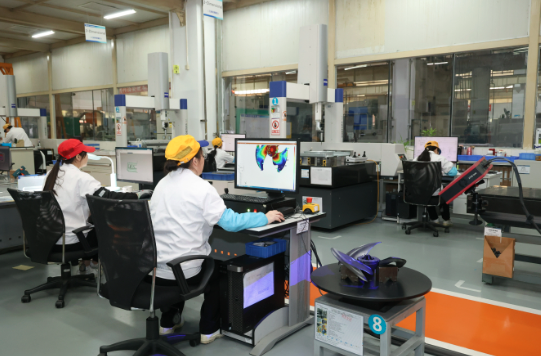

With a state-of-the-art facility, Zhuhai Gree Daikin Precision Mold Co., Ltd. offers a comprehensive suite of advanced manufacturing capabilities designed to meet the highest standards of precision and quality. The company specializes in high-precision machining for manifolds and hot runner plates, ensuring that each component is manufactured to exact specifications. This level of precision is critical for maintaining consistent performance and longevity of the hot runner systems. Additionally, the company produces high-tolerance valve pins and nozzles, which are essential for achieving optimal flow control and minimizing wear. To further validate the quality and accuracy of their molds, Zhuhai Gree Daikin Precision Mold Co., Ltd. utilizes Coordinate Measuring Machines (CMM) and 3D scanning technologies. These advanced tools allow for precise dimensional verification and ensure that every mold component meets the required standards before it leaves the facility.
The company’s rigorous Quality Control (QC) processes are designed to ensure the highest level of dimensional accuracy and functionality for all mold components. Each component undergoes meticulous testing to verify the integrity of hot runner circuits and the functionality of heaters. This ensures that the system operates efficiently and reliably during production. Additionally, the company employs simulation verification to analyze flow and thermal performance. This step is crucial for predicting and optimizing the behavior of the hot runner system under various conditions, thereby reducing the risk of defects and improving overall part quality.
Zhuhai Gree Daikin Precision Mold Co., Ltd. is committed to providing comprehensive after-sales technical support to ensure that customers achieve the best possible outcomes from their hot runner systems. The company offers on-site support for mold setup and tuning, ensuring that the system is correctly installed and optimized for the specific production environment. This hands-on support helps minimize startup issues and ensures smooth operation from the outset. The company also provides training for operators and maintenance teams, equipping them with the knowledge and skills needed to effectively manage and maintain the hot runner system. This includes best practices for operation, troubleshooting techniques, and routine maintenance procedures. To further support long-term performance, Zhuhai Gree Daikin Precision Mold Co., Ltd. offers a range of spare parts and preventive maintenance packages. These services help extend the lifespan of the system, reduce downtime, and ensure consistent performance over time.
The integration of Industry 4.0 principles into hot runner molding is transforming the way manufacturers monitor and control their processes. Real-time monitoring of hot runner temperatures and pressures using IoT sensors allows for continuous data collection and analysis. This data-driven approach enables predictive maintenance for heaters and valve systems, reducing downtime and improving overall efficiency. By leveraging machine learning and statistical analysis, manufacturers can optimize process parameters such as temperature profiles and injection speeds, leading to consistent part quality and reduced waste.
Electric actuated valve gates are gaining popularity in hot runner molding due to their precise, programmable control. Unlike hydraulic systems, electric actuators eliminate the risk of oil leaks and offer greater flexibility in valve pin control. These systems provide full pin-position control, allowing molders to define the velocity, acceleration, and stroke of each pin. This level of control helps in balancing tools, filling complex multi-gated parts, reducing warpage, and even trimming part weight. Additionally, electric systems can be upgraded with position sensors, enabling further optimization of the molding process.
Additive manufacturing, or 3D printing, is revolutionizing the production of hot runner manifolds. This technology allows for the creation of complex manifold structures with optimized flow paths and improved thermal management. For example, HASCO’s Streamrunner technology uses 3D printing to create free-form channels that reduce pressure loss and enhance part quality. This approach not only improves the efficiency of the molding process but also allows for greater customization and reduced cycle times.
With increasing environmental awareness, the automotive industry is focusing on sustainable materials for hot runner molds. Designing molds for bio-based resins requires tighter temperature controls to prevent material degradation. Modern hot runner temperature controllers are designed to accommodate these materials, ensuring precise temperature regulation and consistent part quality. This shift towards sustainable materials not only reduces the environmental impact but also aligns with consumer demands for eco-friendly products.
A1: Hot runner molds are advanced molding technologies used in manufacturing automotive interior parts such as dashboards, door panels, and console trims. They are important because they offer material savings, improved part quality, reduced cycle times, and compatibility with automation, which are crucial for meeting the automotive industry’s demands for precision, cost reduction, and lightweighting.
A2: The core components of hot runner molds include:
Manifold System: Distributes molten plastic from the injection unit to multiple gates while maintaining consistent temperature.
Heated Nozzles: Deliver molten plastic into the cavities without solidifying during transfer.
Temperature Controllers: Manage the heating of manifolds and nozzles to maintain melt temperature.
Valve Gate System (if applicable): Allows precise control over the opening and closing of gates for optimized flow control.
A3: Multi-zone temperature control is essential in hot runner molding as it prevents material degradation due to overheating, ensures consistent melt viscosity and flow behavior, and minimizes color variations and cosmetic defects. This control strategy is particularly important for high-precision applications where part quality and consistency are paramount.
A4: Valve gate timing optimization involves controlling the opening and closing of gates in the hot runner system to optimize the filling pattern of the mold. This is important for reducing weld lines, achieving balanced cavity filling, and improving surface quality, especially for complex automotive interior parts with intricate geometries.
A5: Common challenges include material degradation due to excessive residence time or hot spots, valve pin leakage due to wear or improper thermal expansion control, difficulties in color changeovers due to retained material, and heater failures leading to uneven melt temperature distribution. Solutions involve advanced manifold designs, regular maintenance, optimized color change procedures, and preventive maintenance schedules.
Hot runner molds are critical to high-volume, precision manufacturing of automotive interior parts. Effective process control, including multi-zone temperature management and valve gate timing optimization, ensures consistent quality, reduced cycle times, and cost-efficient production. By partnering with Zhuhai Gree Daikin Precision Mold Co., Ltd., automotive manufacturers can unlock the full potential of hot runner technology, achieving superior product quality while maintaining cost-efficiency and sustainable manufacturing goals.
