Process for Preventing Heat Treatment Cracking

Currently, the parts are experiencing cracking after heat treatment, which severely impacts mold delivery schedules and production costs. The primary reason is insufficient understanding of the heat treatment process, leading to such abnormalities. Preventive measures must be implemented in advance for critical processes to ensure no cracking occurs post-heat treatment.

The cause of cracking is the concentration of internal stress or excessive temperature differentials during the heating and cooling stages of the material, leading to molecular-level separation and fracture.

To address the root cause of cracking, the process must ensure that parts after rough machining do not exhibit sharp edges, thin sections, acute angles, or significant thickness variations. Where necessary, the process should incorporate reinforcing ribs in advance to enhance strength.

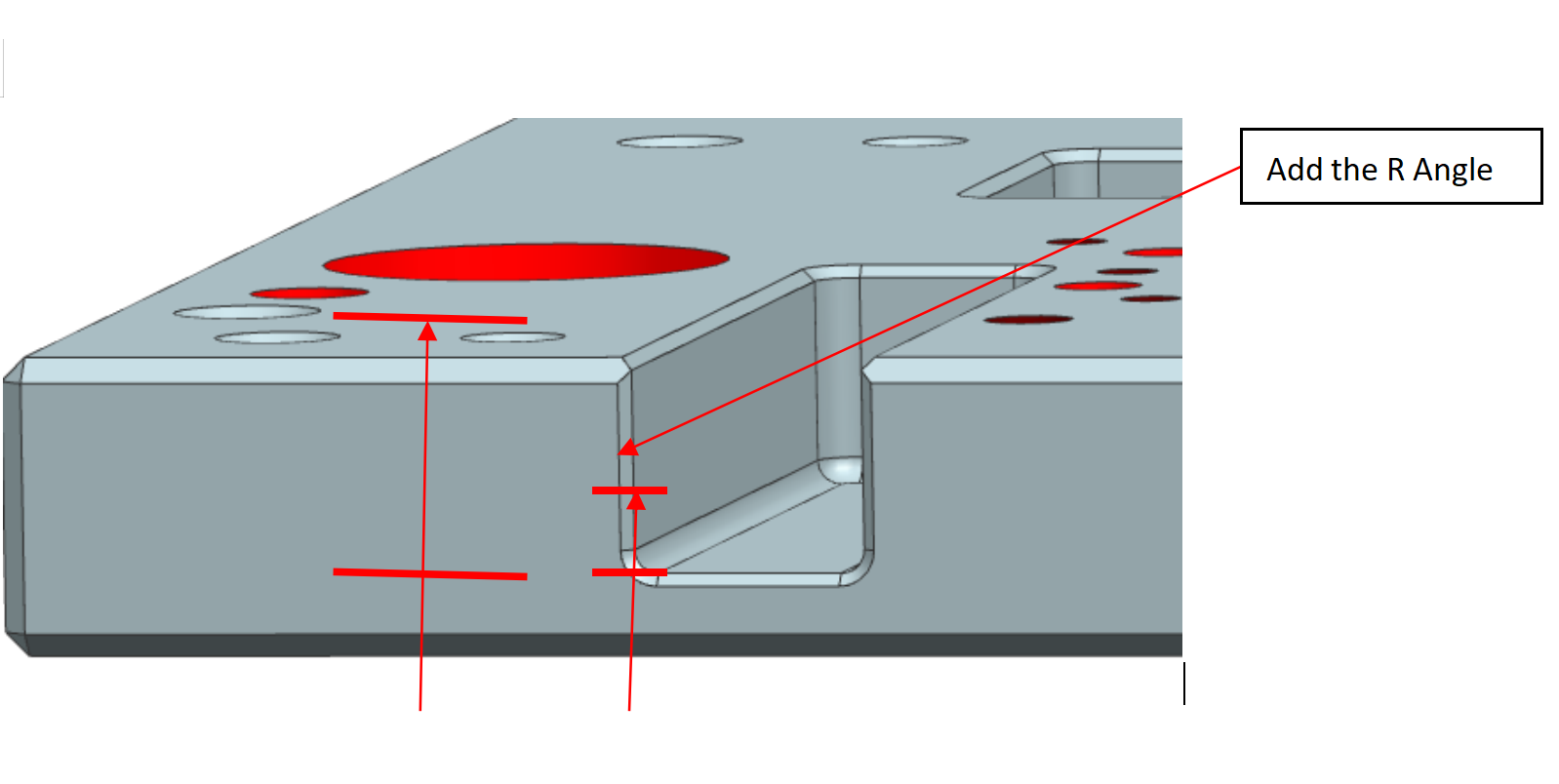

Illustrated Guide to Preventive Heat Treatment of Parts

1. During rough machining, select tools with a radius greater than R3 and preserve the fillet radius at the root to prevent the formation of sharp corners.

2 . When the thickness variation in the design drawing exceeds more than twice, leave additional stock during rough machining to prevent uneven heat dissipation. Thicker areas dissipate heat slowly, while thinner areas dissipate heat quickly, leading to significant temperature differences and tensile cracking.

3. Ensure the distance from hole-type features to the edge is at least twice the hole diameter.
