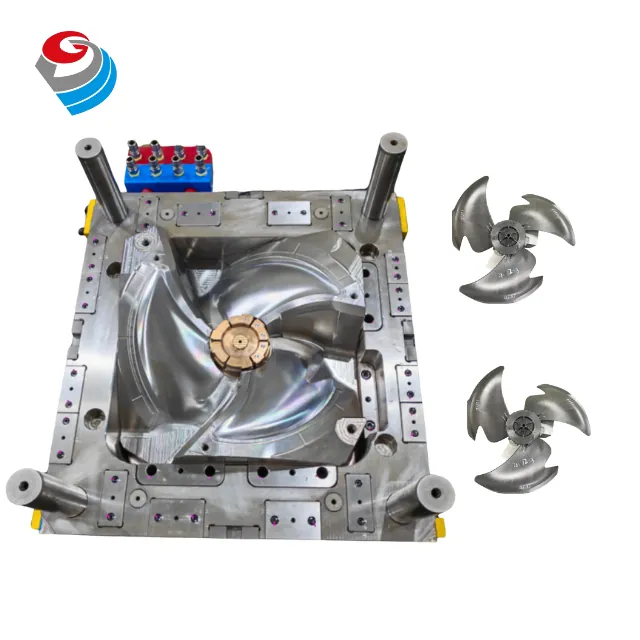

Propeller Fan Injection Mold
| Mold Material | S50C, XPM, 718H, Becu, etc. |
| Standard Parts | PUNCH, MISUMI, etc. |
| Number of cavities | 1X1 |
| Injection Machine Tonnage | 530T |
| Mold Life | 300,000 shots |
 | Dynamic Balance Correction: GreeDaikinMold first determines the optimal gate location through CAE-based pressure analysis, then conducts dynamic balance testing on trial-molded products, ultimately achieving qualified products through iterative corrections. |
| Product Cooling Optimization: To ensure uniform cooling across all three fan blades, GreeDaikinMold enhances the mold cooling channel design for balanced blade cooling. Through CAE cooling analysis, we identify potential heat accumulation areas during production and implement targeted cooling reinforcement. |
 | The product surface has no lack of material and no burrs， blade filling balance， and cooling balance. |
| short cycle， high quality. |
| meet customers' needs. |
As a mold manufacturer jointly established by Gree and Daikin - two industry leaders in air conditioning - GreeDaikinMold possesses extensive experience in axial flow fan blade mold production, with mature and stable manufacturing technologies and processes.
