Injection molds are the backbone of precision manufacturing in industries ranging from automotive and medical devices to home appliances and consumer electronics. The long-term performance, precision, and lifespan of molds directly impact production efficiency, part quality, and cost control for manufacturers worldwide.
As a leading precision mold manufacturer, Zhuhai Gree Daikin Precision Mold Co., Ltd. specializes in injection mold design, manufacturing, and maintenance services. Through years of practice, we have found that while manufacturers often focus on major components during maintenance, several critical yet easily overlooked areas in injection mold maintenance can significantly affect the mold’s performance, lifespan, and the quality of molded products if neglected. This article will systematically analyze these overlooked areas in injection mold maintenance, including cooling water scale buildup, guide pillar and bush wear, and vent clogging, while providing actionable insights on best practices aligned with the expertise and advanced mold manufacturing capabilities of Zhuhai Gree Daikin Precision Mold Co., Ltd.
Injection molds operate under high temperatures, pressures, and repeated cycles, subjecting their components to wear, corrosion, and fatigue. Proper maintenance ensures:
Consistent dimensional accuracy of molded parts
Extended mold life and ROI
Prevention of unplanned downtime
Improved cycle time and productivity
Lower defect rates
Neglecting even minor maintenance areas can lead to:
Flashing or short shots due to poor venting
Dimensional inconsistencies due to uneven cooling
Increased scrap rates
Higher energy consumption
Mold breakdown requiring costly repairs
Zhuhai Gree Daikin Precision Mold Co., Ltd. integrates preventive maintenance strategies in its after-sales services, supporting clients to maximize the performance and lifespan of injection molds.
Cooling channels play a vital role in the injection molding process by efficiently dissipating heat, which directly impacts cycle time, dimensional stability, and overall product quality. Over time, however, hard water minerals, debris, and rust can accumulate inside these channels, significantly reducing water flow and heat transfer efficiency. This buildup can lead to uneven cooling, warpage in molded parts, longer cycle times, and increased energy costs. Proper maintenance of cooling channels is essential to ensure consistent and high-quality production.
One of the most noticeable symptoms of scale buildup is the presence of hot spots on mold surfaces, which can be detected through thermal imaging or surface temperature measurements. These hot spots indicate areas where heat is not being effectively removed, leading to inconsistent cooling and potential part defects. Additionally, increased cycle times and inconsistent part dimensions across cavities are clear indicators of reduced cooling efficiency. Higher scrap rates due to warpage or other defects are also common consequences of neglected cooling channels.
To prevent scale buildup, it is crucial to use filtered and treated water for cooling systems. This helps minimize the introduction of minerals and debris that can accumulate over time. Regular descaling using chemical cleaners or ultrasonic cleaning methods is also essential. These processes can effectively remove existing scale and restore optimal water flow and heat transfer efficiency. Additionally, designing cooling channels with optimal diameters and flow paths can help minimize dead zones where debris tends to accumulate. Zhuhai Gree Daikin Precision Mold Co., Ltd. specializes in designing injection molds with optimized cooling channel layouts that enhance heat dissipation and provide easy maintenance access, thereby reducing the risk of scale buildup.
Guide pillars (leader pins) and guide bushes are critical components that ensure precise alignment between the moving and fixed plates of the mold during operation. Proper alignment is essential for maintaining the integrity of the mold and the quality of the molded parts. Wear in these components can lead to misalignment of cavities and cores, resulting in flashing or parting line mismatch, increased cavity wear, and difficulty in mold opening and closing. These issues can significantly impact production efficiency and product quality.
Wear in guide pillars and bushes can be caused by several factors, including inadequate lubrication, contaminants or debris on guide surfaces, misalignment during mold installation, and long-term mechanical stress without regular inspection. These issues can accelerate wear and reduce the lifespan of these critical components.
Symptoms of wear in guide pillars and bushes include scratches or grooves on the guide pillars, uneven wear on parting surfaces, increased burrs on molded parts, and noisy or jerky mold movement during operation. These signs indicate that the alignment components are no longer functioning optimally, which can lead to further damage and production issues.
To prevent wear, it is important to apply high-quality lubricants regularly to ensure smooth movement and reduce friction. Inspecting guide pillars and bushes for wear patterns during routine maintenance intervals can help identify potential issues early. Prompt replacement of worn guide pillars and bushes is essential to maintain proper alignment and prevent further damage. Additionally, using protective covers during mold transport and storage can help prevent contamination from debris. Zhuhai Gree Daikin Precision Mold Co., Ltd. utilizes high-precision machining and durable materials for guide pillars and bushes, enhancing mold lifespan and alignment stability under high-cycle production conditions.
Vents are small grooves that allow air and gases to escape from the cavity during the injection process. Proper venting is crucial for ensuring complete filling of the mold cavity and maintaining high-quality molded parts. Clogged or insufficient venting can lead to burn marks on parts, incomplete filling (short shots), increased injection pressure requirements, and flashing due to gas entrapment. These issues can significantly impact production efficiency and product quality.
Vent clogging can be caused by resin deposits that accumulate during molding cycles, dust or debris that enters the mold during storage, and oil or lubricant contamination. These contaminants can block the vent slots, preventing gases from escaping efficiently during the injection process.
Symptoms of poor venting include visible burn or gas marks on molded parts, inconsistent filling of cavities, increased cycle time to fill cavities, and higher reject rates. These issues indicate that gases are not being effectively released from the mold cavity, leading to defects and inefficiencies in the production process.
To prevent vent clogging, it is essential to regularly clean vent slots using ultrasonic cleaning or manual scraping with precision tools. This helps remove any accumulated resin deposits or debris that may be blocking the vents. Inspecting and cleaning vents during routine mold maintenance schedules is also crucial to ensure consistent performance. Ensuring that vent dimensions align with material and process requirements is important for optimal gas release. Typically, vent depths of 0.01–0.02 mm are recommended for most resins. Additionally, using mold coatings or surface treatments can help reduce resin sticking and improve venting efficiency. At Zhuhai Gree Daikin Precision Mold Co., Ltd., vents are carefully designed during the mold development phase to ensure optimal gas release while preventing flash, thereby improving molding stability and product quality.
| Area | Potential Issues If Neglected | Best Practice |
|---|---|---|
| Ejector Pins | Sticking, bending, uneven part ejection | Clean and lubricate ejector pins regularly; inspect for wear |
| Hot Runner System | Heater failures, uneven temperature distribution | Check connections and thermocouples regularly |
| Parting Surface | Wear, scratches, flash generation | Clean surfaces, inspect for wear, apply protective coatings |
| Sprue Bush | Wear leading to leakage or burrs | Inspect and replace if worn; polish surfaces |
| Hydraulic Cylinders (if used for cores) | Oil leakage, pressure loss | Inspect seals, replace worn components |
Preventive maintenance is the cornerstone of effective mold management. By defining maintenance intervals based on cycle counts or operating hours, manufacturers can ensure consistent inspections and timely interventions. This proactive approach helps identify potential issues before they escalate into major problems, reducing downtime and improving overall mold lifespan. Regular maintenance schedules should include visual inspections, performance checks, and cleaning procedures tailored to the specific needs of each mold. Adhering to these schedules is essential for maintaining high production efficiency and product quality.
The choice of lubricant is critical for maintaining the smooth operation of molds. High-quality lubricants that are compatible with mold materials and molding temperatures should be used to minimize wear and tear on critical components such as guide pillars, ejector pins, and moving parts. Proper lubrication reduces friction, prevents corrosion, and extends the lifespan of these components. Regularly applying the appropriate lubricants ensures that molds operate efficiently and reduces the risk of mechanical failures during production.
Contamination from dust, oil, or resin can significantly impact mold performance and product quality. To prevent such issues, it is essential to clean molds thoroughly after each use and store them in protective environments. This practice not only prevents the buildup of contaminants that can cause defects in molded parts but also reduces the risk of damage during storage and transport. Using protective covers and maintaining a clean workshop environment are simple yet effective measures to keep molds in optimal condition.
Maintaining detailed records of all maintenance activities is a valuable practice for tracking mold performance and predicting future maintenance needs. Logs should include information on inspections, repairs, and replacements, as well as any observed wear patterns or recurring issues. These records provide valuable insights that can help optimize maintenance schedules, identify potential problems early, and ensure consistent mold performance over time. Detailed maintenance records also support continuous improvement initiatives by providing data-driven insights into mold performance and maintenance effectiveness.

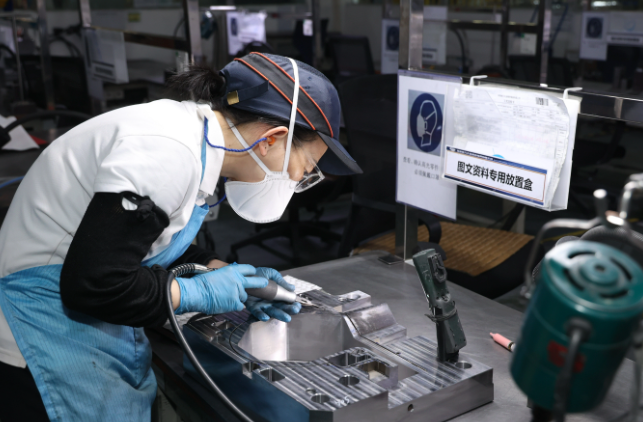

Well-trained maintenance personnel are essential for recognizing early warning signs of mold issues and addressing them promptly. Teams should be equipped with the knowledge and skills to identify potential problems through regular inspections and performance monitoring. Training programs should cover both theoretical and practical aspects of mold maintenance, including troubleshooting techniques, repair procedures, and the use of specialized tools and equipment. By investing in the training and development of maintenance personnel, manufacturers can reduce the likelihood of severe damage and ensure that molds remain in optimal condition for production.
Collaborating with experienced mold suppliers like Zhuhai Gree Daikin Precision Mold Co., Ltd. is crucial for designing molds that are not only efficient in production but also easy to maintain. Molds should be designed with easy access to critical components, removable inserts, and optimized layouts to simplify maintenance procedures. This approach reduces the time and effort required for routine maintenance tasks, minimizes downtime, and ensures that molds can be quickly and effectively repaired or adjusted as needed. Designing for maintenance is a forward-thinking strategy that supports long-term production efficiency and reliability.
A1: Injection mold maintenance is crucial because it ensures consistent dimensional accuracy of molded parts, extends mold life and return on investment (ROI), prevents unplanned downtime, improves cycle time and productivity, and lowers defect rates. Neglecting maintenance can lead to flashing, short shots, dimensional inconsistencies, increased scrap rates, higher energy consumption, and costly mold breakdowns.
A2: Some critical yet easily overlooked areas include cooling channel scale buildup, guide pillar and bush wear, vent clogging, ejector pin issues, hot runner system problems, parting surface wear, sprue bush wear, and hydraulic cylinder issues (if used for cores).
A3: Cooling channel scale buildup can reduce water flow and heat transfer efficiency, leading to uneven cooling, warpage in molded parts, longer cycle times, and increased energy costs. Symptoms include hot spots on mold surfaces, increased cycle times, inconsistent part dimensions, and higher scrap rates.
A4: To prevent cooling channel scale buildup, use filtered and treated water for cooling systems, regularly descale using chemical cleaners or ultrasonic cleaning methods, and design cooling channels with optimal diameters and flow paths to minimize dead zones. Zhuhai Gree Daikin Precision Mold Co., Ltd. designs molds with optimized cooling channel layouts for efficient cooling and easy maintenance access.
A5: Guide pillars and bushes ensure precise alignment between the moving and fixed plates of the mold. Wear in these components can lead to misalignment, flashing, parting line mismatch, increased cavity wear, and difficulty in mold opening and closing, significantly impacting production efficiency and product quality.
Maintaining injection molds is a comprehensive task that extends beyond the obvious wear points. It requires meticulous attention to areas that are often overlooked, such as cooling channel scale buildup, guide pillar wear, and vent clogging. By proactively managing these areas, manufacturers can achieve significant benefits. For instance, addressing cooling channel scale can enhance heat dissipation, thereby reducing cycle times and maintaining consistent product quality. Similarly, monitoring and maintaining guide pillars and bushes ensures precise mold alignment, which helps in extending the mold lifespan and reducing the risk of defects. Additionally, keeping vents clear prevents issues like short shots and burn marks, further improving overall production efficiency. In essence, a holistic approach to mold maintenance not only optimizes the performance of injection molds but also contributes to a more efficient and cost-effective manufacturing process.
