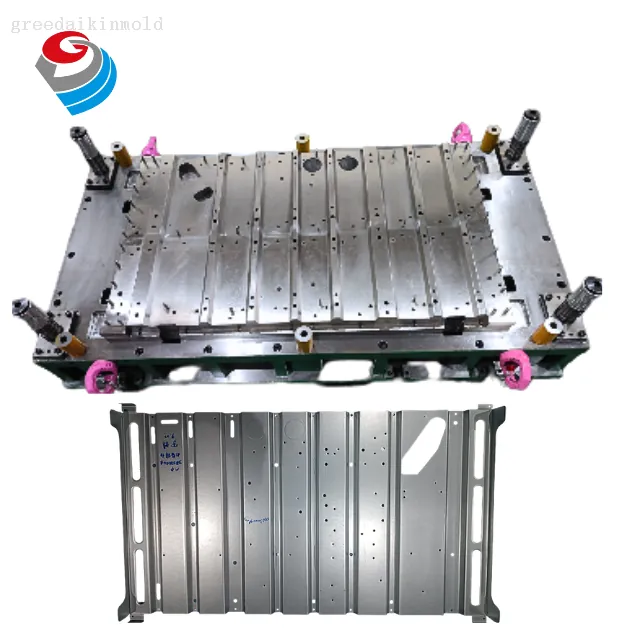

AC Bottom Platel Stamping Die

GreeDaikinMold is a national air conditioner mold manufacturer. Our customers can utilize our stamping dies, and we can help them reduce costs. The air conditioner bottom plate stamping die can produce various styles and scales of air conditioner plates, allowing us to meet the needs of the AC market.

Availability:



Inquire

Product Description

Product Name

Air Conditioner bottom plate stamping die

设计图片1 模具图片4

Production Details

The details of the air conditioner's bottom panel stamping die are as follows：

Tool material	P20,45#，D2，DC53，Gr12mo1v1,ect.
Standard parts	PUNCH, MISUMI, etc.
Die Set	Self-made
Stool Hardness	SGCC，SGCD2，DX56D,ect.
Tool carvity	1X1
Delivery Time	50-60 Days
Punch Speed	30 SPM
Tool life	300,000 Shots

Stamping Die Technical Highlights

	1. The design of the stamping die structure We adopt the whole 3d model and precision design
	2. Stamping production efficiency The parts adopt a quick switch structure, which is convenient for workers to clean and maintain
	3. Stamping Accessories We adopt standard manufacturing, the part can suit many dies
	4. The tool production is an automatic line 4X400T punching machine robot production

Our manufacturing advantages

	Sensor system, Intelligent sensing mold system
	CAE algorithm predicts molding defects (accuracy > 95%)
	Reduce the secondary assembly process and increase the yield rate to 98.6%
	Adopt nano-level CNC processing + EDM micro-hole technology
	Strict quality control
	Self-lubricating microporous structure design (oil-free stamping process)
	Strict quality control
