Air conditioner bottem plate die

GreeDaikinMold is a transnational intelligent mold manufacturer.Our automated design and automated processing can realize mass production of bottom plate molds with excellent reliability and cost-effectiveness. For example, in the air conditioner manufacturing process, the air conditioner bottom plate mold can produce air conditioner bottom plate mold accessory stamping dies of different styles and specifications to meet the diverse needs of the market.

Availability:



Inquire

Product Description

Production Name

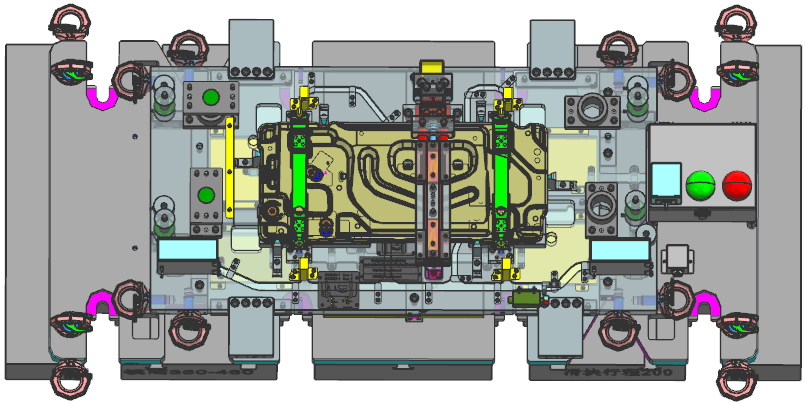

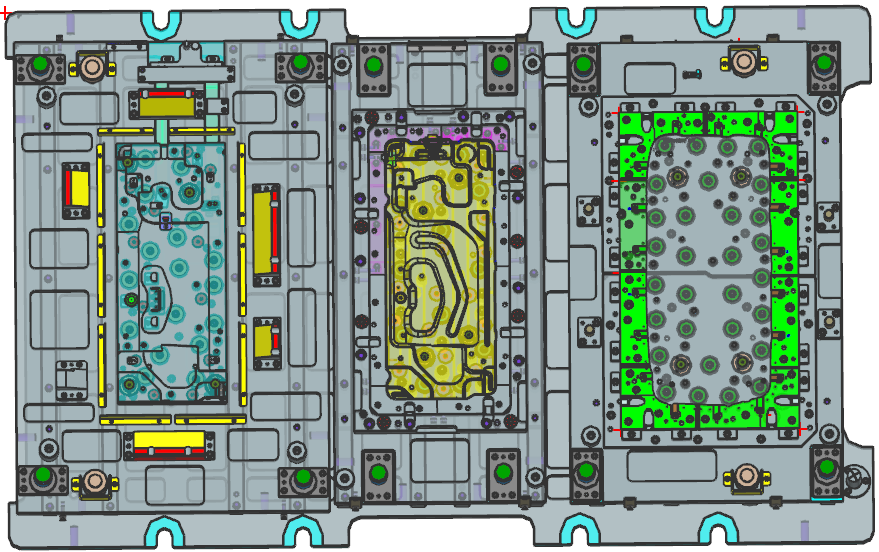

desgin图片1 desgin图片3

Production Details

The detailed information of the bottem plate stamping die is as follows:

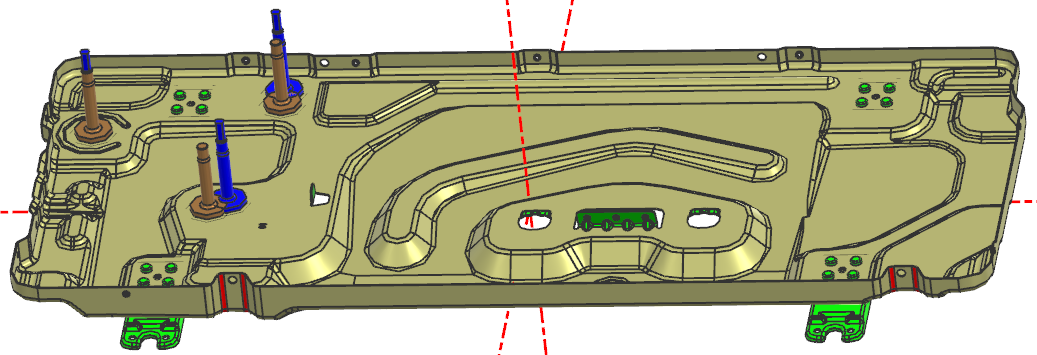

desgin图片2

Core and cavity stell	CrAlSiN nano-coating, D2, DC53, Gr12mo1v1, etc.
Standard parts	Panch,Misims
Die set	Self-made
Stell hardness	HRC60-62
Pounching speed	30SPM
Tool devitry time	50-60days
Tool life	300,000times

Technolical Highlights

Tool structure design:

Adopt carbide insert anti-chipping design (SKH-51+TiAlN coating)

Tool production efficiency:

Adopt stepped unloading structure (punching force reduced by 40%)

Tool accessories:

Adopt integrated standard processing, parts can be used in multiple molds, ensuring the service life of the die

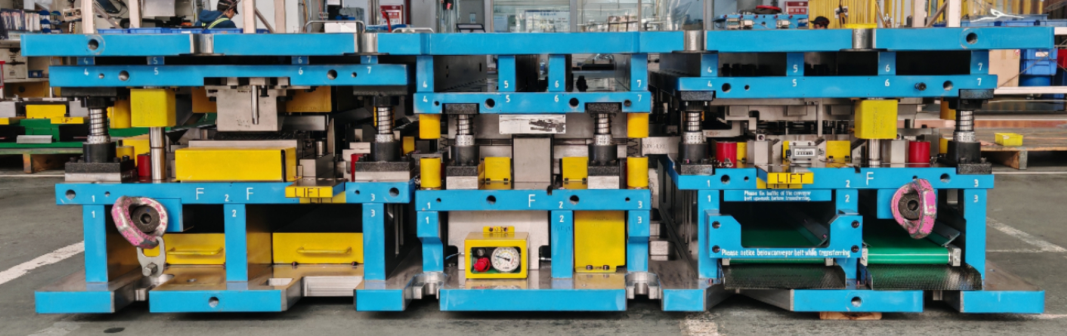

bottemplatedie5

Our advantages

	Stamping die stability, reliability and high qualiBest pricety
	Best price
	Timely delivery
	Good after-sales service
	Strict quality control
	ll molds are fully automatic
