HVAC bracket die

The bracket is a supporting structure used to fix air-conditioning equipment (such as indoor units, outdoor units or module components). It is usually installed on walls, ceilings or specific brackets to ensure that the equipment is stable and operates safely.

The bracket core functions include:
1. Carry the weight of the load air conditioner to prevent equipment damage caused by vibration or displacement.
2. Adapt to the installation type of air conditioner (such as wall-mounted, cabinet or industrial cabinet) to design different installation methods, such as fixed, movable or thermal bridge structure.
3. Assist energy saving and safety, reduce the thermal bridge effect through material selection (such as insulation and fireproof materials), and improve building energy efficiency and fireproof performance.

Availability:



Inquire

Product Description

Production Name

HVAC bracket die

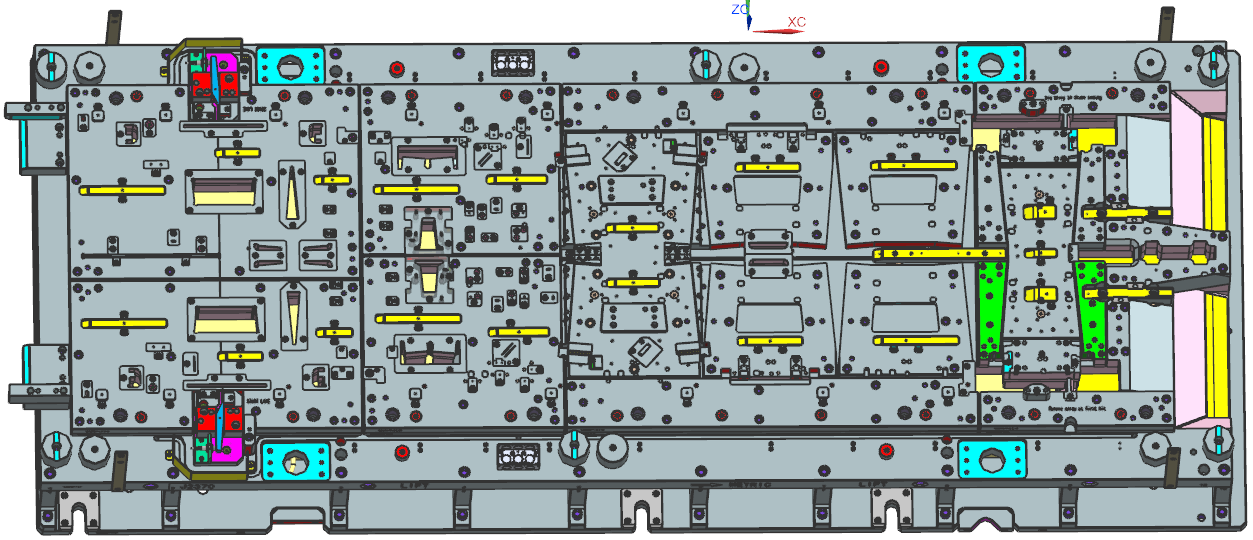

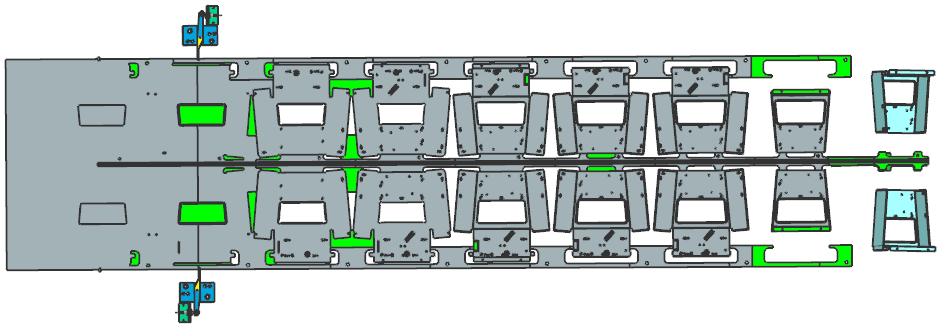

drawing2 drawing1

Production Details

The detailed information of the Stamping Die is as follows:

Core and cavity stell	Stainless steel, Aluminum alloy, D2, DC53, Gr12mo1v1, etc., etc.
Stanard parts	Punch,Misumi
Die set	self-made
Stamping speed	30SPM
Tool devitry time	50-60days
Tool life	300,000times

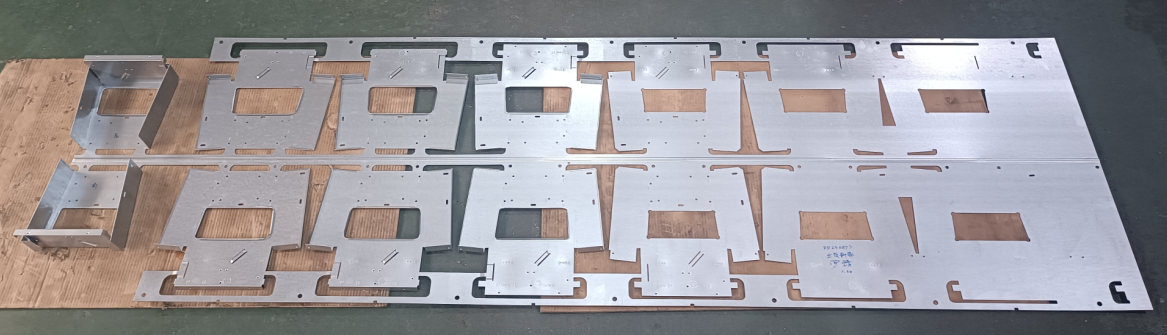

Sample1

Technolical Highlights

	Tool structure desgin: Adpot full 3D modular quick-change structure (15 minutes to complete mold reorganization) design
	Tool Production efficiency: Tool parts adopt standard quick-change disassembly structure, which is convenient for mold cost reduction, efficiency improvement and maintenance
	Tool accessories: Adopt integrated standard processing, parts can be used in multiple molds, ensuring the service life of the die
	Tool production is continuous mold production + automatic line punching machine robot production

Our Advantages

	Fast die manufacturing cycle
	Small and medium batch order switching efficiency increased by 80%, and scrap rate reduced to 0.8%
	Nanocrystalline ceramic surface treatment (friction coefficient reduced by 65%)
	Good after-sales service
	Strict quality control
	Multi-layer composite guide column system (verticality error <0.02/100mm)
