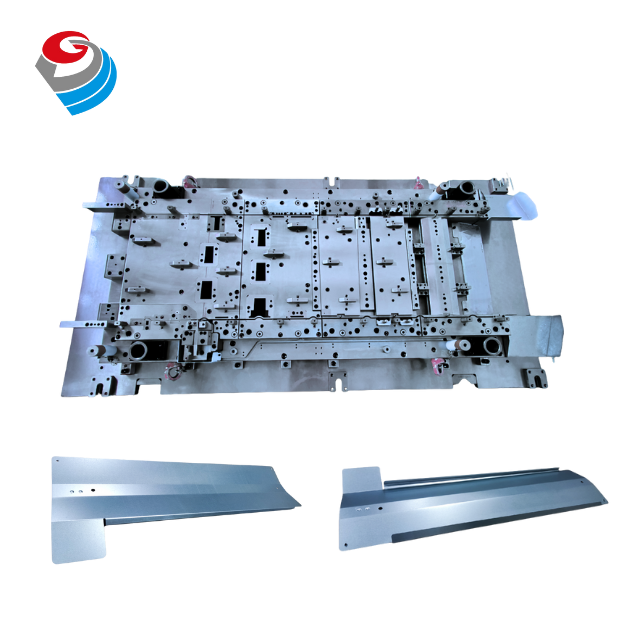

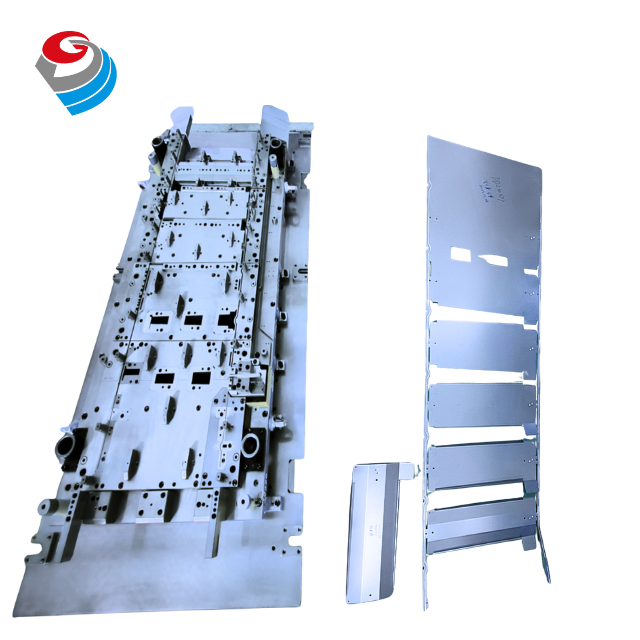

Air conditioner top plate die

Top plates are usually used in special electric control devices (such as cabinets). Top plates are used to replace traditional sockets and directly connect power cords. The main function is to improve safety and current carrying capacity. Applicable scenarios include cabinets above 2P or central air conditioners.
The advantage for users is that they save the cost of purchasing surface-mounted circuit breakers by themselves and avoid the risk of fire and electric shock caused by inferior sockets or improper installation.

Therefore, GreeDaikinMold has been developing and designing this mold product for more than ten years,Now,GreeDaikinMold is a professional die manufacturer for top plates in the home appliance industry.

Availability:



Inquire

Product Description

Production Name

Air conditioner top plate die

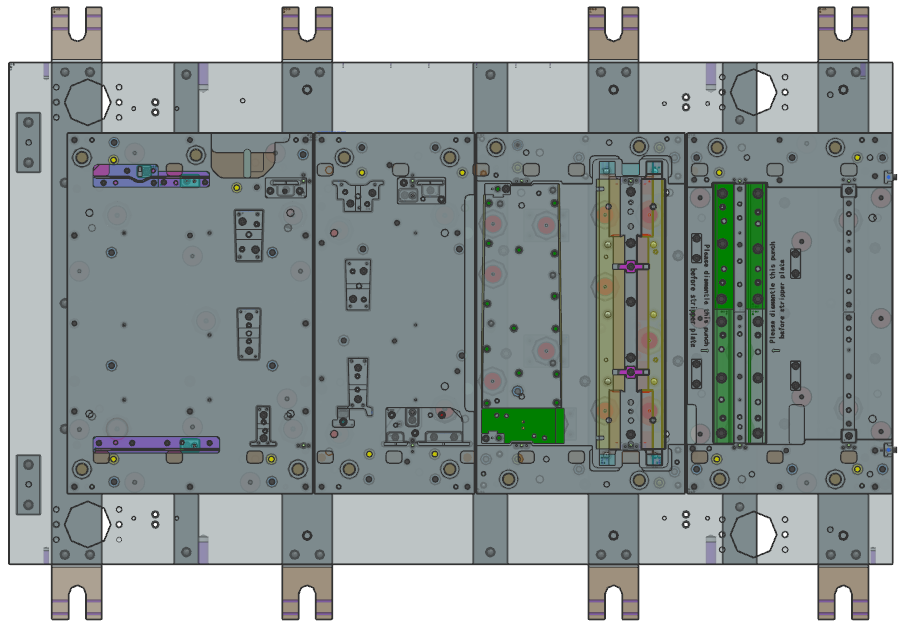

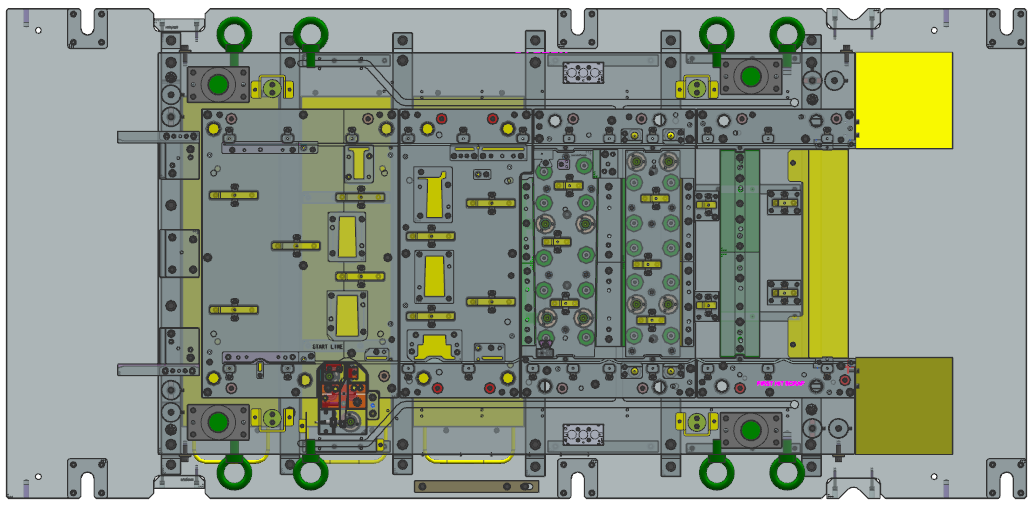

scale2 scale3

Production Details

The detailed information of the air conditioner top plate is as follows：

Core and cavity stell	SKH-51+TiAlN coating, 45#, D2, DC53, Gr12mo1v1, etc.
Stanard parts	Punch,Misumi
Die set	self-made
Stell hardness	HRC60-62
Stamping Speed	30SPM
Tool devitry time	50-60days
Tool life	300,000times

Technolical Highlights

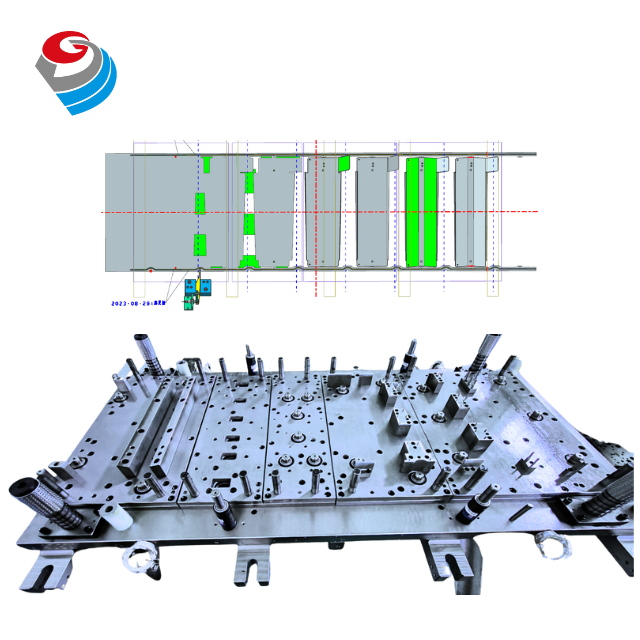

	Tool structure desgin： Adopt full 3D modular quick-change design (changeover time < 4H)
	Tool production efficiency： Tool parts adopt standard quick-change disassembly structure, which is convenient for mold cost reduction, efficiency improvement and maintenance
	Tool accessories： Adopt integrated standard processing, parts can be used in multiple molds, ensuring the service life of the die
	Tool production is continuous mold production + automatic line punching machine robot production

Our advanteages

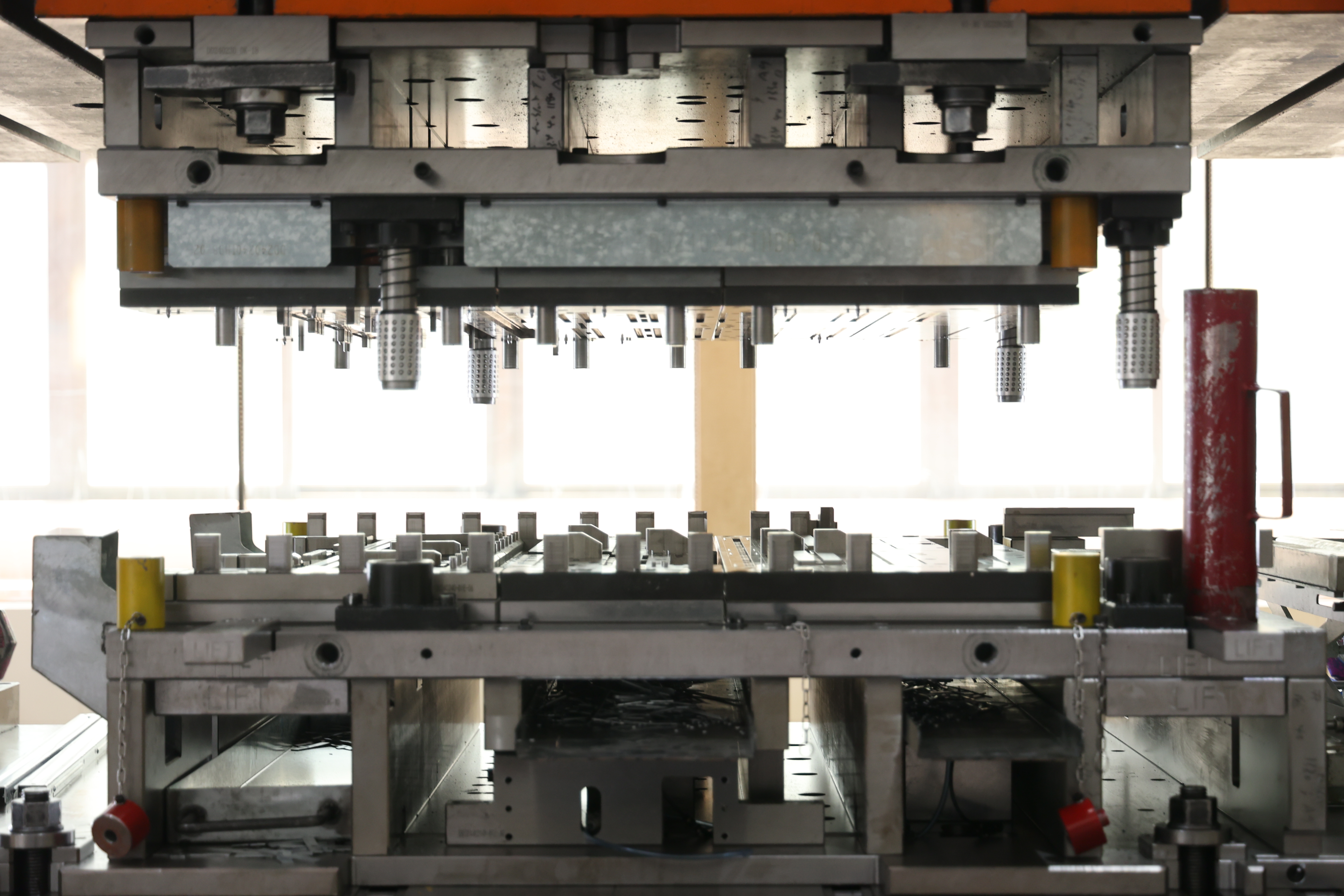

DP1A9376

	High quality, higher mold stability
	Manufacturability and reasonable price
	On-time delivery
	Good after-sales service
	Strict quality control
	Reduce stamping die trials by 60%, and the first pass rate of complex bending parts is 91%

We will provide you with a satisfactory stamping die solution. If you are looking for home appliance air conditioner ceiling accessories die, please come to us for inquiry.
