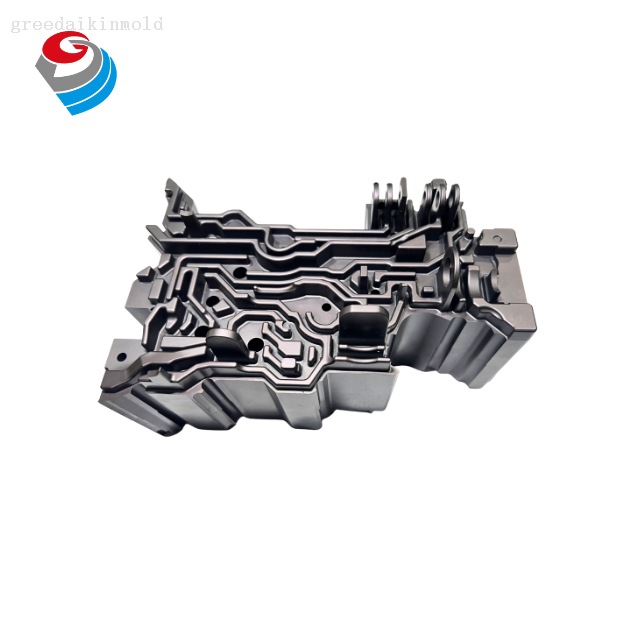

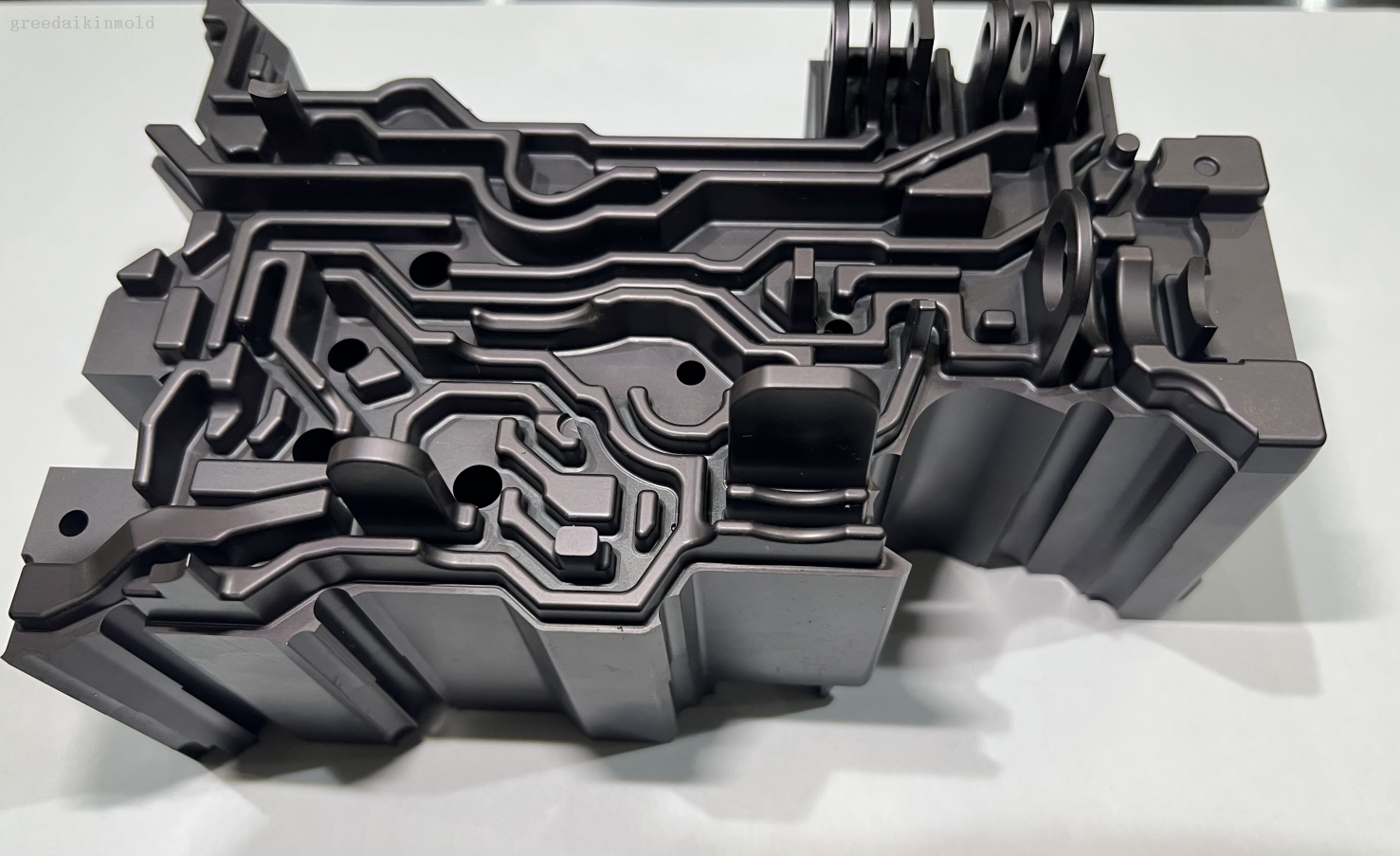

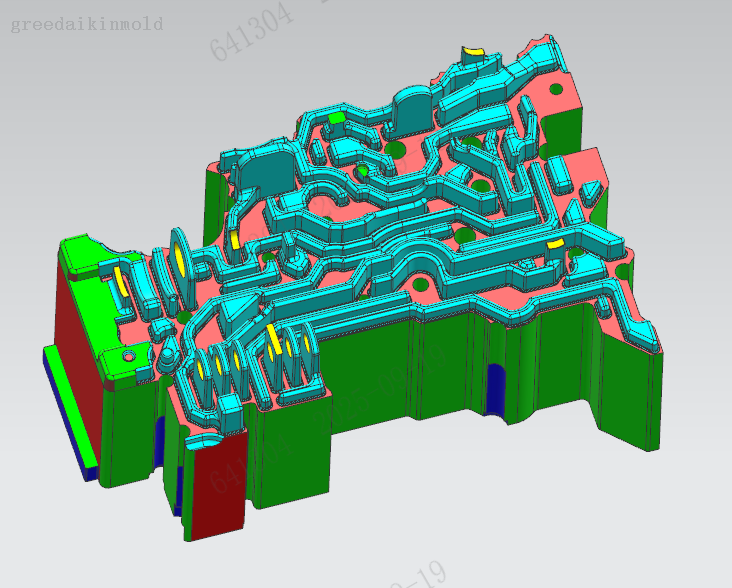

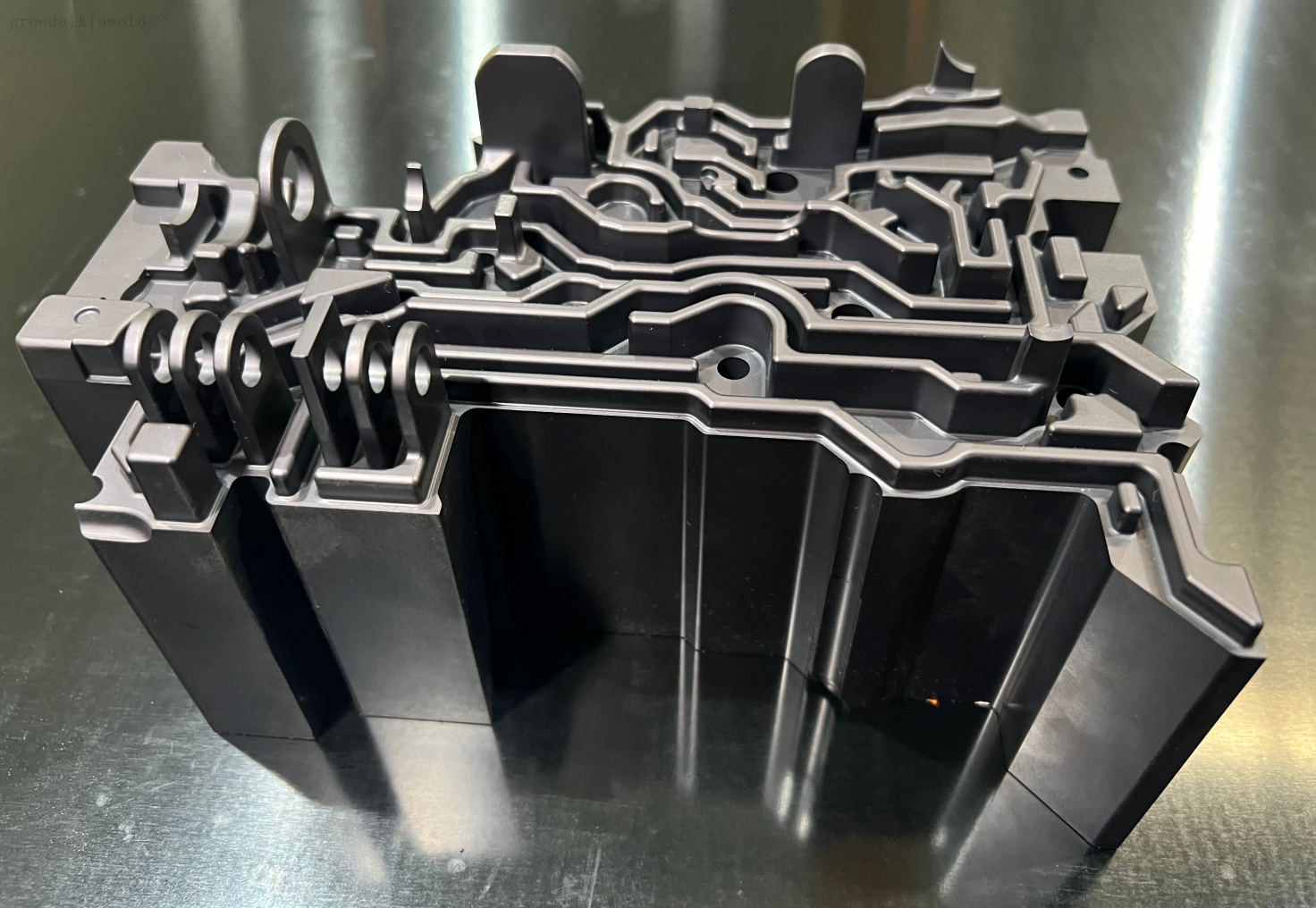

Moving mold insert
| Material | DH31-EX |
| Application | Automotiv |
| Dimensions | 203.000X116.000X100.000 |
| Processing | CNC1-RD--HT→GRI-M → CNC3-WEDM→EDM→ IPQC |
| Technical requirements | We need to guarantee that the position accuracy is ±0.01mm, and the profile accuracy is 0.01mm |
Special parts with mature process chain technical guidance and advanced processing equipment.
 | Kuroda Grinding Machine: For external vertical right angles and steps. |
| Mitsubishi Wire EDM: For external irregular surfaces and side holes |
| Makino Machine: For processing the dimensional and positional accuracy of ribs. |
| With the involvement of precise inspection methods and dedicated technical guidance and follow-up at each process, we ensure quality and on-time delivery |
