▉ Simplification of the precision mold structure
Reduce complex shapes and try to avoid overly complex surfaces and irregular structures. On the one hand, simplify into geometric shapes to reduce the complexity of tool paths during machining. On the other hand, reducing the difficulty of assembly and processing the surface allows us to avoid error accumulation.

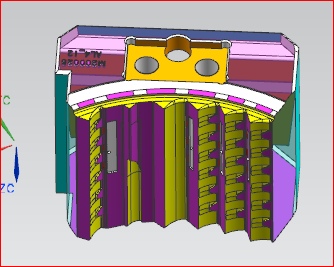

▉ Standardization of demo
The objective is to prioritize standard parts, thereby reducing custom machining. This approach improves processing efficiency and accuracy while preventing the specification of excessively tight tolerances.
▉ Machining Process Adaptability
Consider manufacturing methods during design, fully accounting for the characteristics and limitations of each processing technique.
▉ Detail Optimization
Corner Design: Optimize mold corners to reduce stress concentration, enhancing strength and lifespan.
Draft Angles: Apply appropriate draft angles on all cavities to facilitate demolding and minimize mold damage risks.

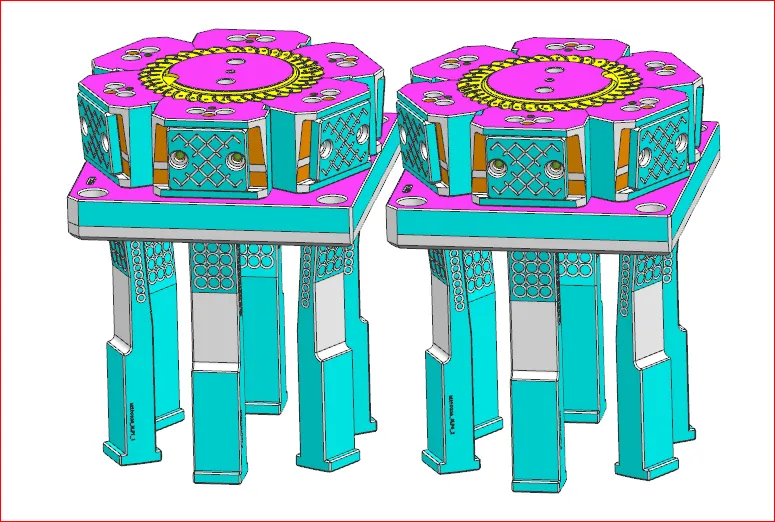

▉ Design for Manufacturing (DFM)
Early Collaboration: Engage with machining teams during initial design stages to understand process constraints and requirements.Continuous Improvement: Iteratively refine mold designs to improve machining efficiency and quality.
